Jauch車規晶振Q 0.032768-JTX210-12.5-20-T3-LF JTX210 2012 32.768K 12.5PF-40°C125°C
汽車石英晶體
來自法國JAUCH晶振的符合AEC-Q200標準的石英晶體
無論是接縫密封、玻璃密封、全金屬還是音叉-這些SMD石英晶體都非常適合在汽車行業使用.
用于汽車應用的進口晶振石英晶體會受到特定環境條件的影響.AEC-Q200標準中明確規定了具體的相應測試條件.
汽車耐高溫晶振,AEC-Q200音叉石英晶體

我們符合AEC-Q200標準的晶體已經過優化,可滿足適用于汽車使用的特殊工作條件.
符合AEC-Q200標準的SMD石英晶振全金屬封裝、陶瓷封裝和金屬/陶瓷封裝
抗沖擊性：>100G（6.0ms;半正弦）/（HMR選項：3000G）
抗振性：>5G（10~2000Hz）/（HMR選項：20G）
擴展工作溫度范圍：-40°C~+125°C
高頻穩定性貼片晶振
寬頻率范圍
無鉛,符合RoHS和REACH標準
汽車耐高溫晶振,AEC-Q200音叉石英晶體溫補晶振

Manufacturer Part Number 晶振制造商零件編號	Manufacturer 晶振生產商，制造商	Series 晶振型號	Frequency 晶振頻率	Frequency Tolerance 晶振頻差	Load Capacitance 晶振負載電容	Operating Temperature 晶振溫度	Package / Case 晶振腳位	Size / Dimension 晶振尺寸
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-7-10-T1-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	7pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-7-10-T1-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	7pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-7-10-T1-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	7pF	-40°C ~ 85°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-9-10-T2-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	9pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-9-10-T2-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	9pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-9-10-T2-HMR-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	9pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)

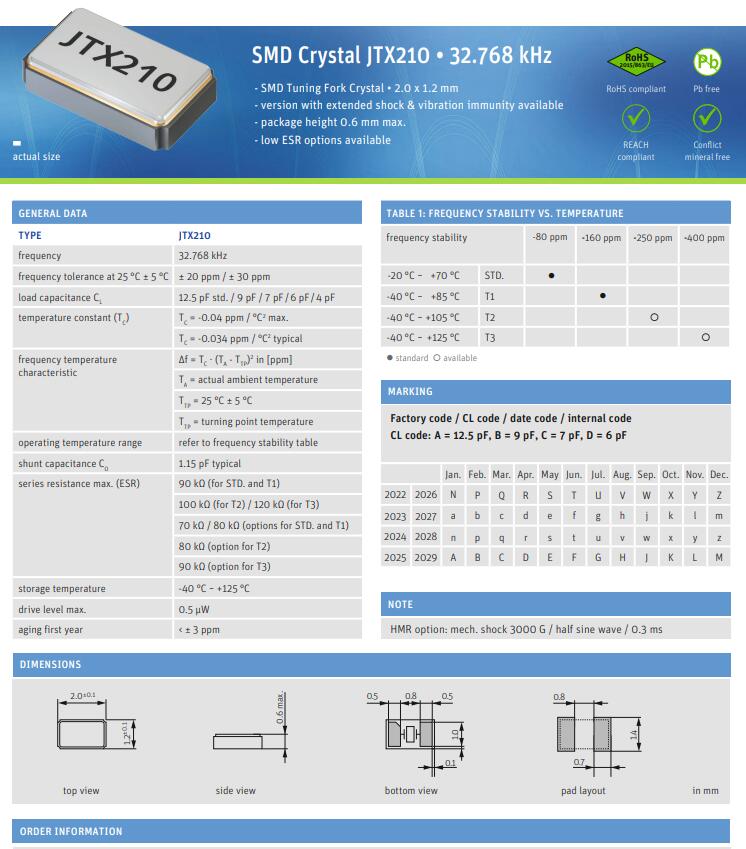

Q 0.032768-JTX210-12.5-20-T3-LF	Jauch Quartz	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	2	(2.00mm x 1.20mm)
Q 0.032768-JTX210-12.5-20-T3-LF	Jauch Quartz	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	2	(2.00mm x 1.20mm)
Q 0.032768-JTX210-12.5-20-T3-LF	Jauch Quartz	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C	2	(2.00mm x 1.20mm)
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	Jauch Quartz	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C	2	(3.20mm x 1.50mm)
Q 19.2-JXS21-10-10/15-T1-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	10pF	-40°C ~ 85°C	4	(2.00mm x 1.60mm)
Q 19.2-JXS21-10-10/15-T1-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	10pF	-40°C ~ 85°C	4	(2.00mm x 1.60mm)
Q 19.2-JXS21-10-10/15-T1-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	10pF	-40°C ~ 85°C	4	(2.00mm x 1.60mm)
Q 19.2-JXS21-12-10/15-T1-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	12pF	-40°C ~ 85°C	4	(2.00mm x 1.60mm)
Q 19.2-JXS21-12-10/15-T1-WA-LF	Jauch Quartz	JXS21-WA	19.2MHz	±10ppm	12pF	-40°C ~ 85°C	4	(2.00mm x 1.60mm)
